Understanding Particles and Dynamics in Maya—Part 19

by
Difficulty:IntermediateLength:ShortLanguages:

Preview


1. Creating Tornado Mesh

Step 1

Open Maya

Open Maya
Open Maya

Step 2

Go to Create > Volume Primitives > Cone and create a cone in the perspective viewport.

Create  Volume Primitives  Cone
Create > Volume Primitives > Cone

Step 3

Select the top face of the cone and delete it.

Select the top face of the cone and delete
Select the top face of the cone and delete

Step 4

With the cone mesh selected, go to pConeShape1 attribute. Open Smooth Mesh rollout and turn on Smooth Mesh Preview option. Jump in the vertex selection mode and edit the shape of the cone as shown in the following image.

Smooth Mesh Preview
Smooth Mesh Preview

2. Animating Tornado Mesh

Step 1

With the tornado mesh selected, press D key and set the pivot point at the top of the mesh.

With the tornado mesh selected
With the tornado mesh selected

Step 2

With the mesh selected, go to pCone1 attribute and set the Scale Y value to 0

With the mesh selected
With the mesh selected

Step 3

Make a right mouse click on Scale Y attribute and click on Set Key option.

Scale Y attribute
Scale Y attribute

Step 4

Go to 100th frame on the time line and set the value of Scale Y attribute to 1

Scale Y attribute
Scale Y attribute

Step 5

Jump in the Animation mode. With the mesh selected, go to Create Deformers > Lattice.

Jump in the Animation mode
Jump in the Animation mode

Step 6

Go to ffd1LatticeShape attribute and set the lattice divisions as shown in the following image.

ffd1LatticeShape attribute
ffd1LatticeShape attribute

Step 7

Make a right click on the lattice shape and select Lattice Point option. Edit the lattice points as shown in the following image.

Lattice Point option
Lattice Point option

Step 8

With the tornado mesh selected, animate the Rotate Y value from 0 to 200th frames. Set the rotation value to 360 degree at 200th frame.

With the tornado mesh selected
With the tornado mesh selected

3. Adding Fluid Effect

Step 1

Jump in the Dynamics mode. Go to Fluid Effects > Create 3D Container and draw a 3D fluid container in the view port as shown in the following image.

Jump in the Dynamics mode
Jump in the Dynamics mode

Step 2

Go to fluidShape1 attribute and set the value of Base Resolution to 50. You can change this value to 150 just before rendering for the final output. Change the values of Density and Velocity to Dynamic Grid.

Go to fluidShape1 attribute
Go to fluidShape1 attribute

Step 3

Go to Container Properties and set the options of Boundary X to None, Boundary Y to –Y Side and Boundary Z to None. Set the values of the grid as shown in the following image.

Go to Container Properties
Go to Container Properties

Step 4

With the tornado mesh and fluid container selected, go to Fluid Effects > Add/ Edit Contents > Emit from Object.

Fluid Effects  Add Edit Contents  Emit from Object
Fluid Effects > Add/ Edit Contents > Emit from Object

Step 5

Go to Auto Resize to turn on Auto Resize option and turn off Resize Closed Boundaries and Resize in Substeps options. Set the values of Auto Resize Threshold to 0.002 and Auto Resize Margin to 4.

 Auto Resize
Auto Resize

Step 6

Go to fluidEmitter1 attribute and set the value of Density/ Voxel/ Sec to 5.

fluidEmitter1 attribute
fluidEmitter1 attribute

Step 7

Go to Lighting rollout and turn on Self Shadow option and change the value of Shadow Quality of 2. Set the Ambient Brightness value to 0.2.

Ambient Brightness
Ambient Brightness

Step 8

Go to fluidShape1 > Content Details > Density and set the values of Density Scale to 1, Buoyancy to 0, Dissipation to 2 and Noise to 0.100. Go to Velocity and set the values of Swirl to 10 and Noise to 0.250.

fluidShape1  Content Details  Density
fluidShape1 > Content Details > Density

Step 9

Go to Turbulence and set the values of Frequency to 0.5 and Speed to 1.

Turbulence
Turbulence

Step 10

Add lattice and tornado mesh in layers and turn off the visibility of these layers.

Add lattice and tornado mesh
Add lattice and tornado mesh

Step 11

Go to Fields > Vortex and click on the option box.

Go to Fields  Vortex
Go to Fields > Vortex

Step 12

Set the Volume Shape as Cylinder and then click on Create button.

Volume Shape as Cylinder
Volume Shape as Cylinder

Step 13

Scale up the vortex size to fit in the container as shown in the following image.

Scale up the vortex size
Scale up the vortex size

Step 14

Go to Dynamic Simulation roll out and set the values of High Detail Solve to All Grids and Solver Quality to 50.

Go to Dynamic Simulation
Go to Dynamic Simulation

Step 15

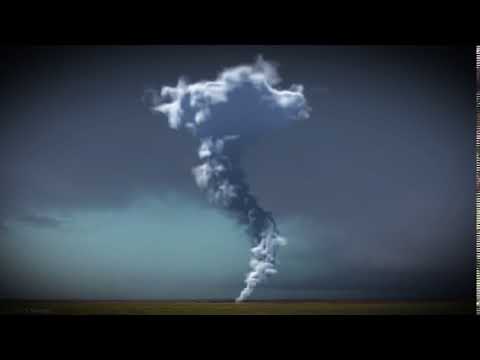

Press the render button and you will see the rendered and simulated tornado image.

Hit the render button
Hit the render button

Conclusion

In the next part of the tutorial, I'll show you how to create dust impact using fluid dynamics in Maya.
