Create an Awesome 3D Stroked Outline Animation

by
Read Time:6 minsLanguages:

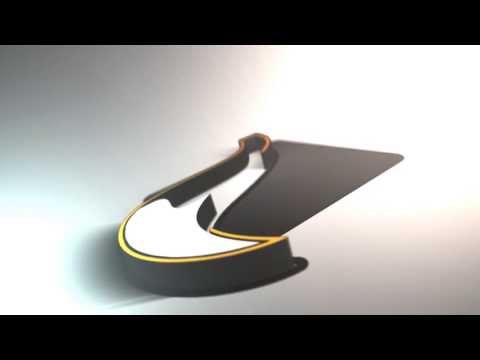

In this tutorial, I will be explaining you how to create some extruded stroke effects only using After Effects. This effect can be used effectively on any logo. You will have the freedom to choose between the extruded layers, animated strokes, and flat layers. Additionally, I will show you how to fake the flare effect to give more depth to the result.


1. Creating the Base of the Logo


Step 1

Create a new composition.

image001image001image001

Step 2

Make a new Adjustment Layer.

image002image002image002

Rename it to Controllers.


Step 3

Apply a Checkbox Expression Control on this layer.

image003image003image003

Step 4

Duplicate the Checkbox Control 12 times and rename them accordingly as you can see from the picture.


Step 5

Make another composition for your logo.

image005image005image005

Step 6

Insert your logo.

image006image006image006

I have used this logo for the color patterns which will be required in the next steps.


Step 7

Again, make another composition for the color layers.

image007image007image007

Step 8

Drag your Logo composition twice into this composition.

image008image008image008

Step 9

Apply the Color Range effect on the top layer.

image009image009image009

Step 10

Select only the white color on the logo.

image010image010image010

Step 11

Choose Alpha Inverted Matte from the bottom layer.

image011image011image011

Step 12

Pre-compose these two layers and name it White.

image012image012image012

Step 13

Drag in two more copies of the logo composition.

image013image013image013

Step 14

Again, apply the Color Range effect on the 1st Logo layer and this time select only the black color.

image014image014image014

Step 15

Select Alpha Matte from the bottom logo, Pre-compose them and name it Colors.

image015image015image015

Step 16

Drag one more layer of Logo composition and apply the Fill effect to it.


Step 17

Now, Pre-compose it and name it Black. It's important to select the white color as the Fill effect.

image017image017image017

Step 18

Drag two more layers of the Logo comp under these layers.

image018image018image018

Step 19

Repeat the actions of Step 14 to select the black color, but select Alpha Inverted Matte.

image019image019image019
image020image020image020

Step 20

Pre-Compose and name it Only Black

image021image021image021

Step 21

Duplicate the Color layer and White layer. Now you should have a total of 6 layers in this comp overall. Rename them accordingly.

image022image022image022

Step 22

Search for the Vegas effect in the effects panel.


Step 23

Apply it on the first White layer and keep the following settings.


Step 24

For setting up the key frames in the timeline, use the following settings.

image025image025image025

image026image026image026


Step 25

Apply the Vegas effect on the second Colors layer and use the following settings.


Step 26

Again, for keyframes in the timeline, use the following settings.

image028image028image028

image029image029image029

image030image030image030


Step 27

Apply the Vegas effect on the third Black layer along with the following settings.


Step 28

Use the following settings for the key frames in the timeline.

image032image032image032

image033image033image033

image034image034image034


Step 29

Alt-Click the stopwatch of Opacity to bring up the options of the first White layer and use the following expression.
c =comp("Main Comp").layer("Controllers").effect("White Stroke")("Checkbox")

if (c==1){

opacity=100

}else if (c==0){

opacity=0}

image035image035image035

Step 30

Repeat the previous step on each layer one by one and use the expressions as mentioned.
For Color
c =comp("Main Comp").layer("Controllers").effect("Color Stroke")("Checkbox")

if (c==1){

opacity=100

}else if (c==0){

opacity=0}

image036image036image036

For Black
c =comp("Main Comp").layer("Controllers").effect("Black Stroke")("Checkbox")

if (c==1){

opacity=100

}else if (c==0){

opacity=0}

image037image037image037

For Only White
c =comp("Main Comp").layer("Controllers").effect("Only White")("Checkbox")

if (c==1){

opacity=100

}else if (c==0){

opacity=0}

image038image038image038

For Only Color
c =comp("Main Comp").layer("Controllers").effect("Only Color")("Checkbox")

if (c==1){

opacity=100

}else if (c==0){

opacity=0}

image039image039image039

For Only Black
c =comp("Main Comp").layer("Controllers").effect("Only Black")("Checkbox")

if (c==1){

opacity=100

}else if (c==0){

opacity=0}

image040image040image040

With these steps completed, we are done with base settings of our project.


2. Setting Up the Main Composition


Step 1

Drop this Color layer comp into the Main composition. Rename this to Top. Make a new Solid and apply the Ramp effect to it along with following settings.


Step 2

Copy the top layer and rename it to Logo 001. Make them 3D layers.

image042image042image042

Step 3

Apply the Fill effect on Logo 001.


Step 4

Bring up the Opacity options and paste the following expression on Logo 001.
c =thisComp.layer("Controllers").effect("Extrude")("Checkbox")

if (c==1){

opacity=100

}else if (c==0){

opacity=0}

image044image044image044

Step 5

Bring up the Position options of the Logo 001 Layer and paste the following expression.

offset=1;

p=thisComp.layer("Top")

offsetInterval=Math.abs(index-thisComp.layer("Logo 001").index);

[p.position[0],p.position[1],p.position[2]+(offset*offsetInterval)];

image045image045image045

Step 6

Now make 50 duplicates of the Logo 001 layer.

image046image046image046

This will fake extrusion on the logo.


Step 7

In the previous section, we made 3 layers named Only Color, Only Black & White. Insert them under the Logo 001 layer and make them 3D layers.

image047image047image047

Step 8

Bring up their Opacity options and paste the following expressions one by one.

For Only Color
c =thisComp.layer("Controllers").effect("Logo BG Color Colors")("Checkbox")

if (c==1){

opacity=100

}else if (c==0){

opacity=0}

image048image048image048

For White
c =thisComp.layer("Controllers").effect("Logo BG Color White")("Checkbox")

if (c==1){

opacity=100

}else if (c==0){

opacity=0}

image049image049image049

For Only Black
c =thisComp.layer("Controllers").effect("Logo BG Color Black")("Checkbox")

if (c==1){

opacity=100

}else if (c==0){

opacity=0}

image050image050image050

Step 9

Bring in one more Logo layer, make it a 3D layer, and bring up its Opacity options to paste the following expression.
c =thisComp.layer("Controllers").effect("BG Logo")("Checkbox")

if (c==1){

opacity=100

}else if (c==0){

opacity=0}

image051image051image051

Step 10

Apply a Position Expression Control on the Controller layer. Insert one more Logo layer and rename it to Shadow.


Step 11

Bring up its Opacity options and paste the following expression on Shadow layer.

c =thisComp.layer("Controllers").effect("Enable Shadows")("Checkbox")

if (c==1){

opacity=100

}else if (c==0){

opacity=0}

image053image053image053

Step 12

Apply CC Radial Blur and the Tint effect with a black color on the Shadow layer. Pick whip the Position of CC Radial Blur to the Shadow Position on the Controller layer.

image054image054image054

Step 13

Now make few copies of the Shadow layer and change the settings slightly as you can see from the pictures below.

image055image055image055

image056image056image056

image057image057image057


Step 14

Copy the Position of Logo 050.


Paste it on these layers.

image059image059image059

Step 15

The project is apparently ready. Lets check some settings. I will use some different Checkbox settings to give it different looks.

image060image060image060

image061image061image061

image062image062image062

image064image064image064

image063image063image063


Step 16

As you can see, we can achieve some very different looks with these Checkboxes. Now we can also change the direction of the shadow by altering the Shadow Position option.


Step 17

Here are some examples.

image066image066image066

image067image067image067


3. Making Flares


Step 1

Make a new Solid bigger in size than the size of the composition.

image068image068image068

Step 2

Apply a Mask to it.

image069image069image069

Step 3

Use the following settings.

image070image070image070

Step 4

Here is a preview of the flare, but its not looking good yet.

image071image071image071

Step 5

Make few copies of the Flare layer and change the settings slightly.

image072image072image072

image073image073image073


Step 6

Let's have a look now.

image074image074image074

Step 7

So the flare is looking better than before but the shadows are not looking real. Let's change their position.

image075image075image075

So now we are done with the tutorial. We have seen some tips to achieve different looks for your logo, shadow, and flare. You can always improve these settings by applying further adjustments in your own project.


Conclusion

In this tutorial we learned how to achieve a stroke effect on different parts of the logo and animate them. Additionally, we created extrusions, shadows, and flares to give it a more photo realistic look so the end product looks great. I hope you have learned some useful tips... until next time!
